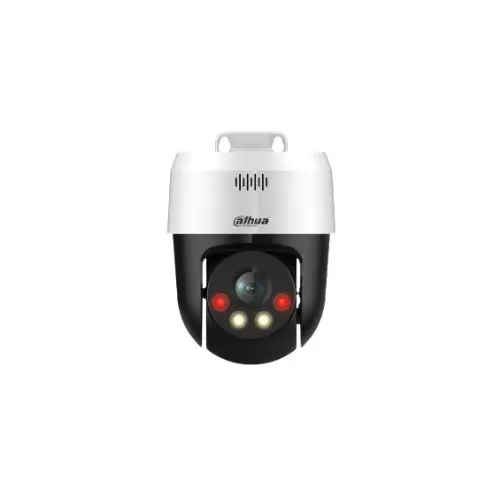

DAHUA DH-SD2A200HB-GN-A-PV-S2 2MP FULL-COLOR NETWORK PT CAMERA 2MP full-color Network PT Camera
📸 Key Features
🎥 High‑Definition Video
2MP (1080p) resolution with a 1/2.8″ CMOS sensor for clear Full HD footage.
Up to 25/30 fps frame rate ensures smooth video.
H.265 compression saves bandwidth and storage while maintaining quality.
🌙 Full‑Color Night Vision
Equipped with both IR LEDs and white light to capture true‑color images at night up to ~30 m (98 ft).
Supports three night modes: infrared, full color, and hybrid smart mode.
🔄 Pan‑Tilt Control
Wide PT coverage:
Pan: 0°–345°
Tilt: 0°–80°
Flexible viewing across large areas without multiple fixed cameras.
Supports preset positions for fast repositioning (up to 300 presets).
🤖 Smart Detection & Alerts
Human detection helps reduce false alarms by focusing on people.
Intelligent video analytics (IVS): supports tripwire and intrusion events.
Active deterrence: built‑in sound alarm and white light flash to warn off intruders.
🔊 Audio & Communication
Two‑way talk: built‑in microphone and speaker allow real‑time communication through the camera.
💾 Onboard Storage
Supports MicroSD card storage (up to 512 GB) for video recording at the edge.
📡 Network & Integration
PoE (Power over Ethernet): simplifies installation with one cable for data and power.
Compatible with ONVIF, making it easy to integrate with many NVRs and VMS systems.
🏠 Durable & Weatherproof
IP66 rating — dustproof and water‑resistant for outdoor use.
Designed to function in a wide range of conditions, suitable for exterior surveillance setups.
📊 Technical Summary
| Feature | Specification |
| Image Sensor | 1/2.8″ 2 MP CMOS |
| Resolution | 1920 × 1080 (Full HD) |
| Frame Rate | 25/30 fps |
| Lens | 4 mm fixed, ~102.2° diagonal FOV |
| Night Vision | IR + White Light up to ~30 m |
| PT Range | Pan 0–345°, Tilt 0–80° |
| Smart Features | Human detection, tripwire, intrusion |
| Audio | Two‑way (mic + speaker) |
| Storage | MicroSD up to 512 GB |
| Compression | H.265/H.264/MJPEG |
| Power | PoE (802.3af) / 12 VDC |
| Weather Rating | IP66 outdoor protection |
| Active Deterrence | Sound and white light alarm |
📌 Use Cases
This camera is ideal for:
Perimeter surveillance around buildings or yards.
Large area coverage with pan‑tilt flexibility.
Active deterrence for entry points, driveways, and walkways.
Smart detection to reduce false alarms and enhance situational awareness.
📈 Summary
The Dahua DH‑SD2A200HB‑GN‑A‑PV‑S2 is a feature‑rich Full‑Color PT network camera offering Full HD video, smart human detection, two‑way audio, and active sound/light deterrence. With PoE support and rugged IP66 weatherproofing, it’s a solid choice for integrated video security both indoors and outdoors.
