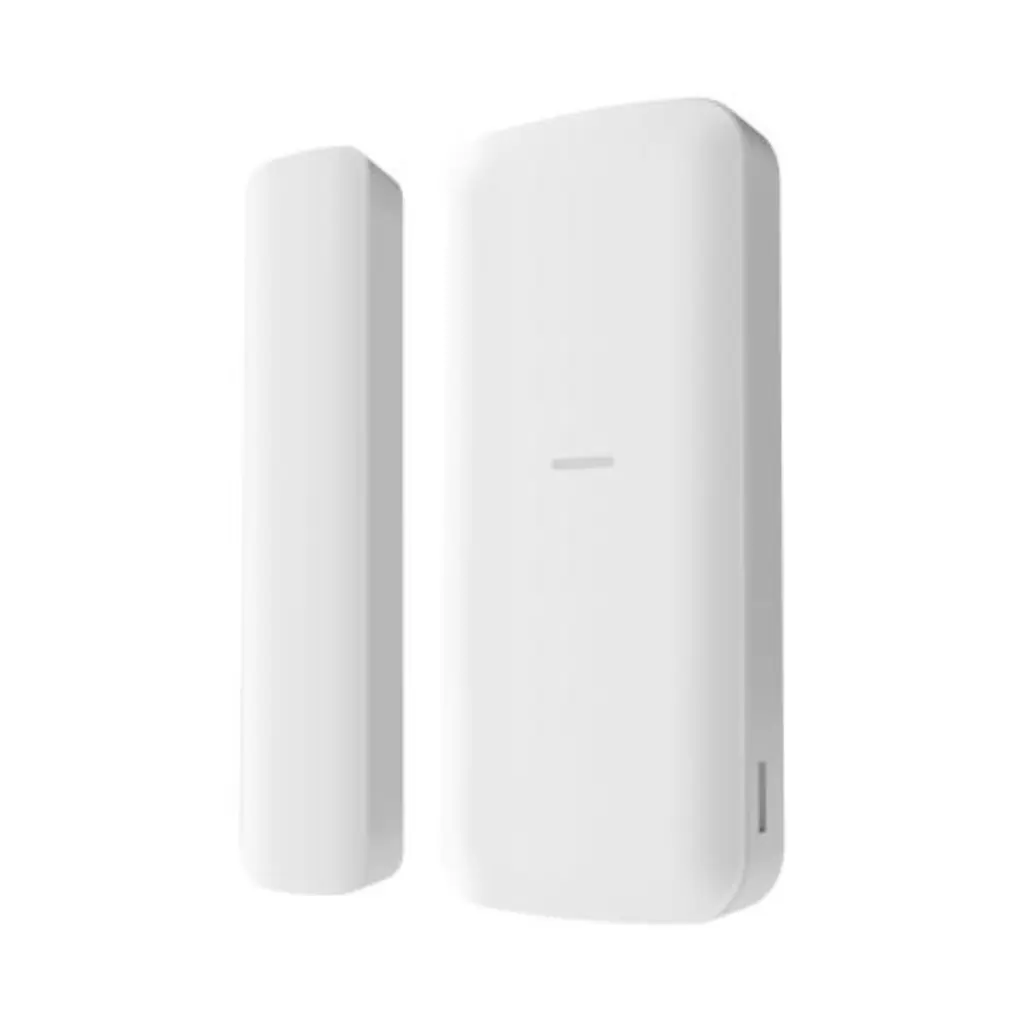

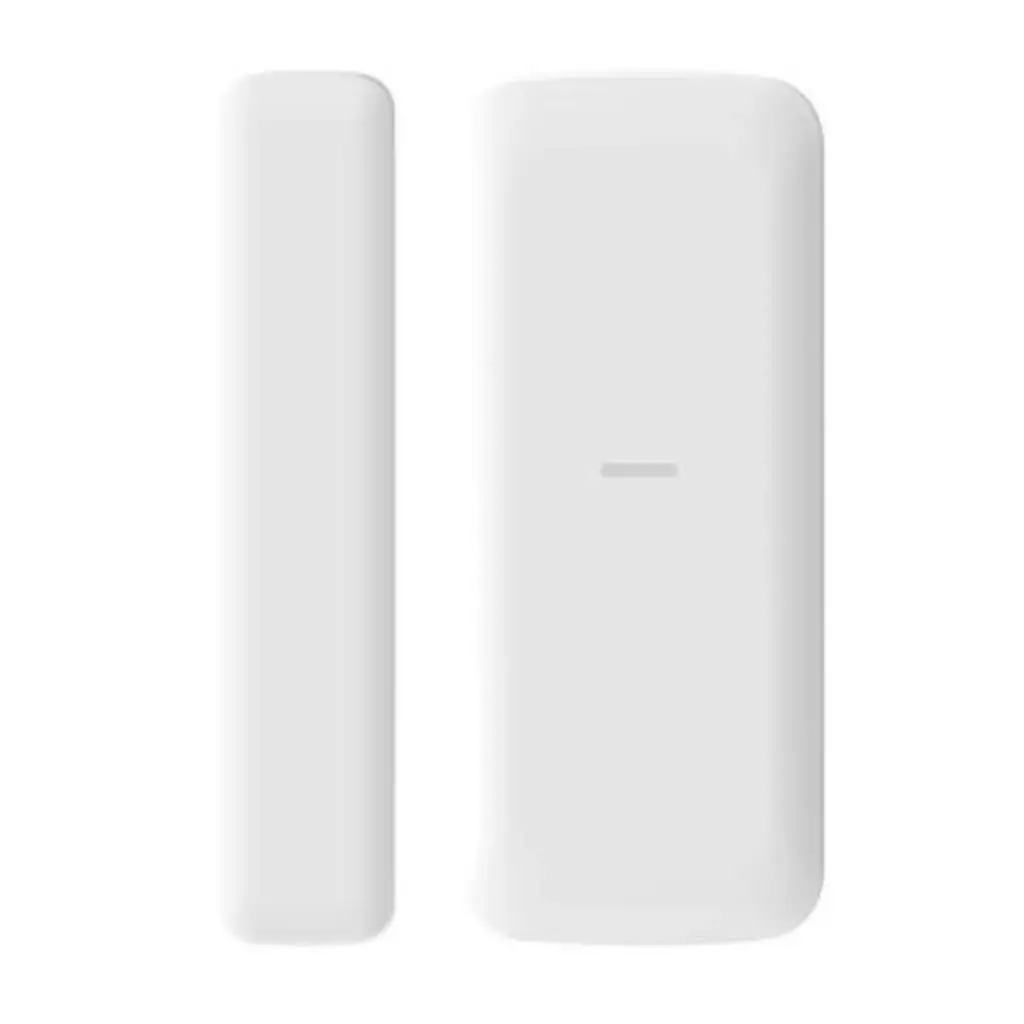

🔹 Slim, low-profile design — ideal for installation in door/window frames without being noticeable.
🔹 Wireless operation — communicates with the alarm panel using RF (Tri-X Wireless).
🔹 Remote configuration — can be configured via mobile app when paired with the alarm system.
🔹 Frequency hopping — helps avoid RF interference and jamming for stable communication.
🔹 Tamper protection — alerts if front or rear tamper is triggered.
🔹 Signal strength & environment temperature indicators supported.
Method: Magnetic opening contact.
Detection gap: Up to ~52 mm (variable by model batch).
Technology: Tri-X Wireless (two-way RF).
Frequency: 433 MHz.
Security: AES-128 encrypted wireless communication.
Range (open air): ~1 km.
Enrollment: Power-up, remote ID, or QR code.
Battery: 1 × CR2450 (3 V) — included.
Typical battery life: ~3 years.
Dimensions: ~29 × 69 × 10 mm (main sensor) and ~14 × 69 × 10 mm (magnet).
Weight: ~38 g.
Operating temp: −10 °C to 55 °C.
Humidity: 10 % to 90 % RH.
Installation: Typically mounted on wood or non-metal surfaces.
Application: Indoor only.
Works with Hikvision AX PRO wireless alarm systems and compatible hubs/controllers that support Tri-X Wireless sensors.
Ideal for door/window perimeter protection — contributing to intrusion detection.
